Kasur Tanneries Waste Management Agency (KTWMA)

Establishment

  • The government of Pakistan and United Nations Development Program (UNDP) signed the Kasur Tannery Pollution Control Project document in January 1996
  • UNDP allocated US$ 2.5 million, whereas the local input was Rs. 199 million

Inflow Wastewater

  • Comes in two drains from the Tanneries
  • Two drains comes side by side along the road coming from tanneries to the treatment plant

Flow Measurements

Drain 1

Width = 145 cm = 1.45 m
Depth = 54 cm = 0.54 m
Velocity of wastewater = 0.13933 m/s

  • Flow = 0.1091 m3/s
    • = 9426.32 m3/d

Drain 2

Width = 90 cm = 0.9 m
Depth = 54 cm = 0.54 m
Velocity of wastewater = 0.28575 m/s

  • Flow = 0.1388 m3/s
    •  = 499.94 m3/hr
    • = 11998.75 m3/d

Measurements

  • From Drain 1 ( Q ) = 9426.32 m3/d
  • From Drain 2 ( Q ) = 11998.75 m3/d

Total Discharge = 21425.07 m3/d

The treatment plant suspends all large particles from the discharge coming towards it. The pore size is of 60 mm. Furthermore, bar screening is done manually.




Discharge inflow drain

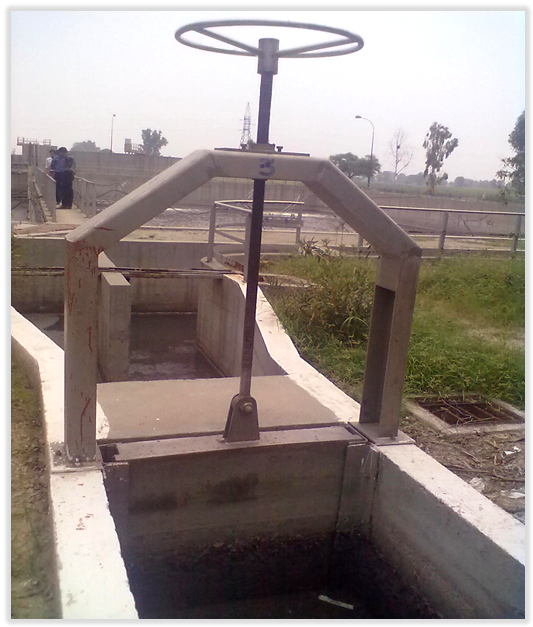

Manual bar screening




Mechanical bar screening


Distribution of wastewater to the aeration Tanks

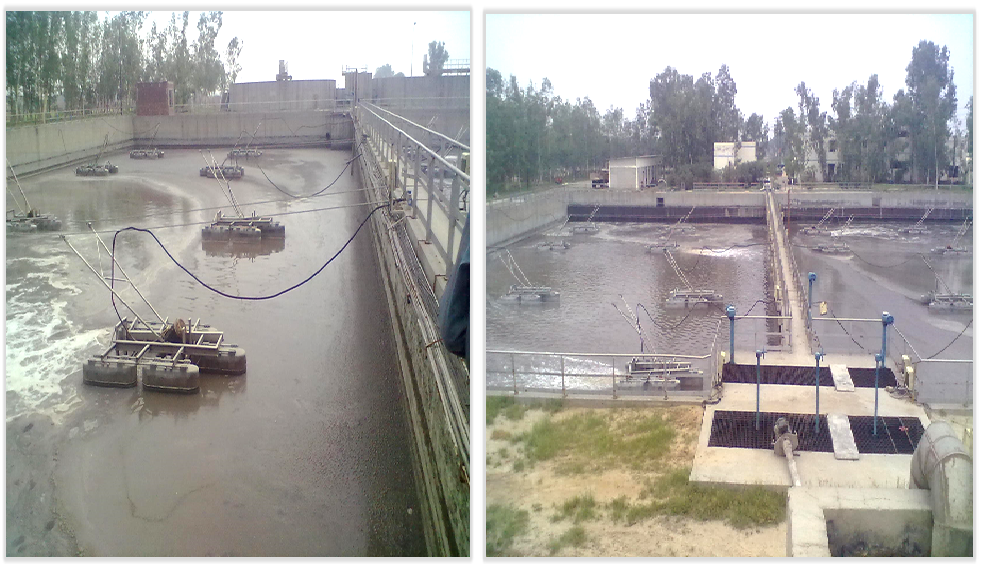

Aeration Tanks

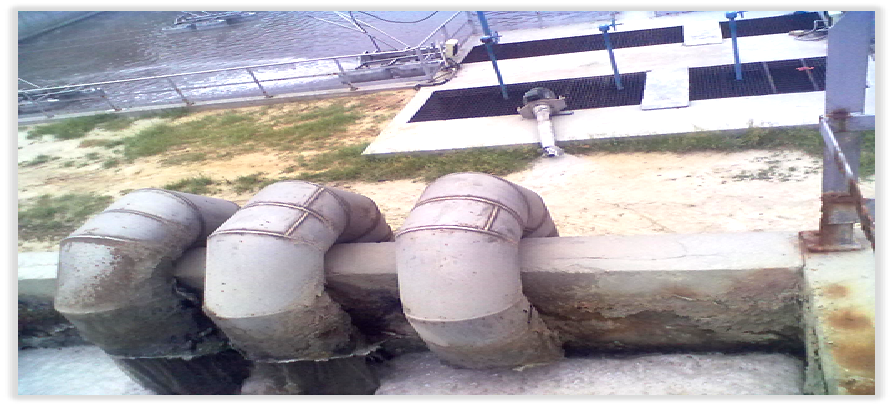

Pumping system
